model

OPS908S

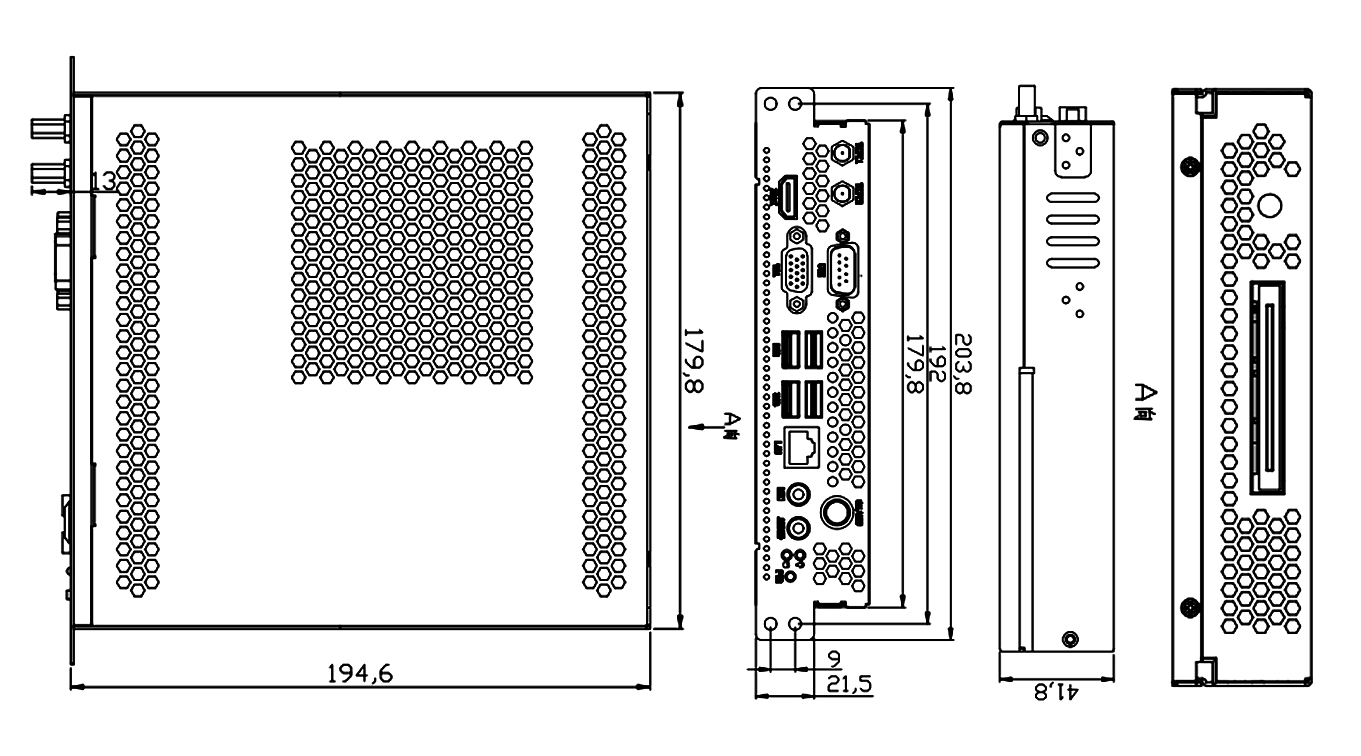

size

180*195*42 mm，顏色黑色

Material

SECC Electrolytic Board

chipset

H81

CPU

Support LGA1150 interface Intel 4^th i3-i5-i7 CPU

RAM

Onboard 4GB DDR3 memory, expandable to 12G

Graphics card

Depending on the selected CPU model

Sound card

Integrated Realtek ALC662 HD

Expansion slot

Support OPS extension for Intel OPS interface specification

1*MINI-PCIE interface, can load wifi, 3G module

1*MINI-SATA interface for loading SSD solid state drives

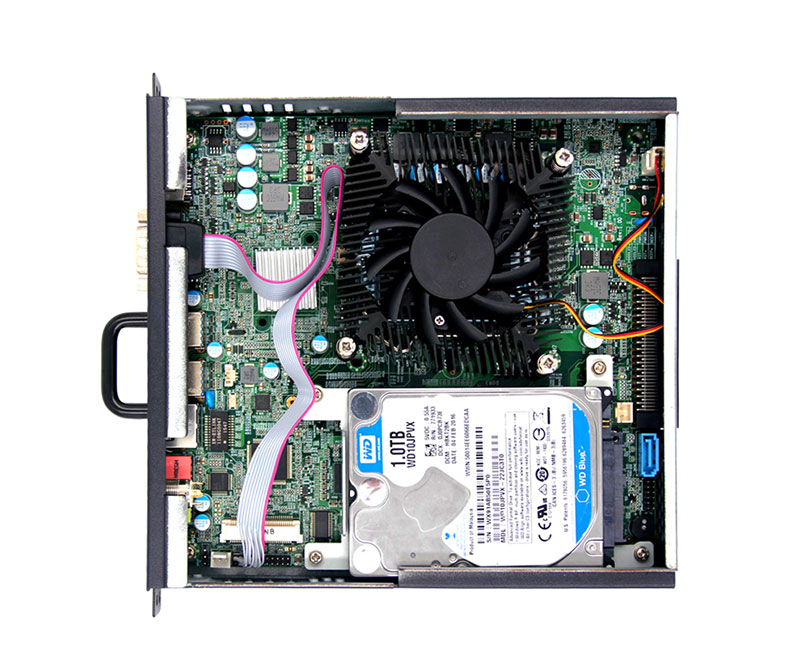

storage

HDD 2.5 inch notebook hard drive

SSD solid state drive

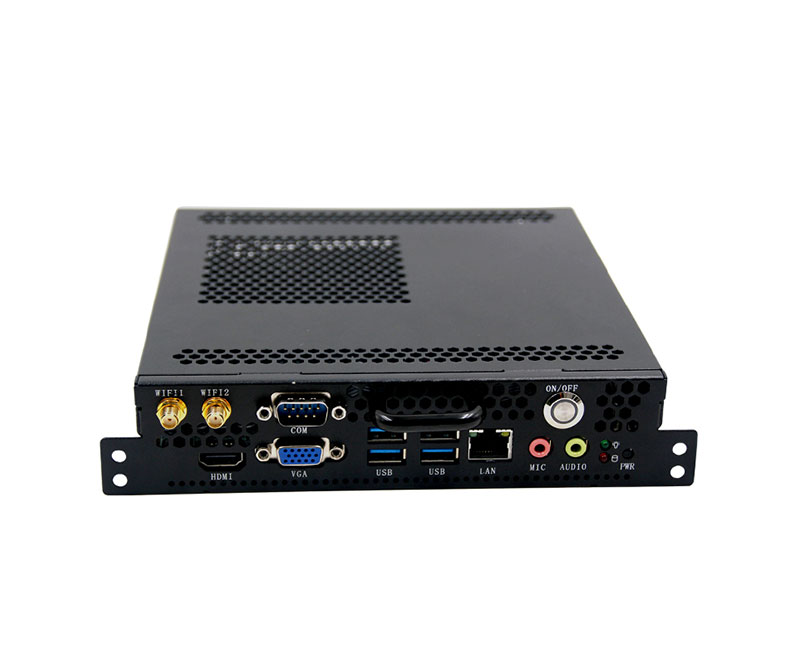

Post I/O interface

Display output

HDMI、VGA

Network output

1*Realtek 81111 EL (Gigabit LAN)

COM

1*RS232

USB

4*USB3.0

audio port

1*MIC-IN  1*LINE-OUT

Switch and indicator

1* fast switch button, 1* power and hard drive indicator

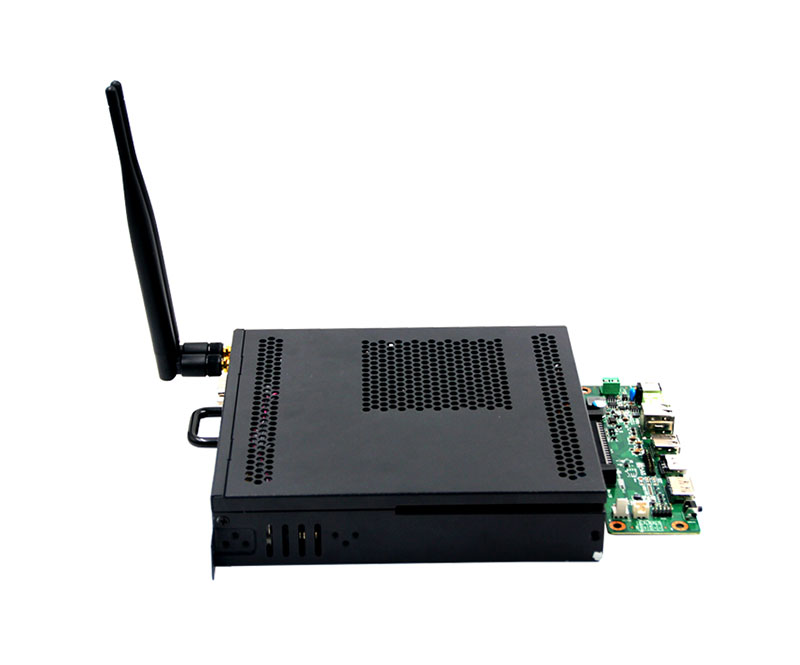

OPS daughter card I/O

Display output

HDMI,DP

USB

3*2.0

power supply

1*DC-JACK

Audio

1*LINE-OUT

switch

1* fast switch button

Power, system, environment description

power supply

12V-19V DC in-line (support hardware setup caller boot)

system

Windows7、windows 8、windows8.1、windows10，linux

working environment

-10~60℃

power supply

12V-19V DC in-line (support hardware setup call power on)

1*12V5A power adapter (optional)

1*host

1*DriveCD

1*Instruction Manual

product name

WIFI/3GModules

  notebook/ SSDHard Disk

Power Adapter
